Channel

ACS can supply a wide range of channels and T head bolts to suit almost any application within the construction industry.

Channels and T head bolts may be supplied in a variety of lengths and materials to suit your specific needs.

Image of 31/21 AXIS Curve Channel

31/21 AXIS Curve Channel

Image of 40/22 Cast in Channel

40/22 Cast in Channel

Image of 38/17 Cast in Channel

38/17 Cast in Channel

Image of 54/33 Cast in Channel

54/33 Cast in Channel

Image of 41/22 Cast in channel

41/22 Cast in Channel

Image of 40/25 Cast in Channel

40/25 Cast in Channel

Image of 72/49 Cast in Channel

72/49 Cast in Channel

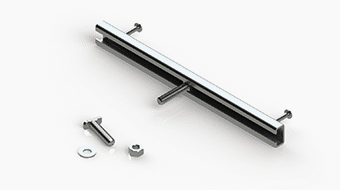

Image of 28/15 Cast in Channel

28/15 Cast in Channel

Image of 21/19 APEX Channel

21/19 APEX Channel

Image of 28/28 Dovetail Slot channel

28/28 Dovetail Slot

25/15 Framefix Channel

25/15 Framefix Ultra Channel

Cast in channels are spilt into 2 groups, self-anchoring & welded anchor types. Self-anchoring channels are predominantly used for restraint ties whilst channels with welded anchors are used for heavier loadings such as fixing masonry support. Cast in channels offer continuous adjustment longitudinally and can eliminate the need for site drilling thus reducing labour on site.

Surface fixed channels are generally used for restraint ties. They may be bolted back to masonry, concrete, steelwork and steel studding with appropriate fixings. Usually installed in continuous lengths to allow the secondary fixer continuous adjustment longitudinally when installing masonry ties.

Plain back channels may be used for supporting or restraining masonry. These channels are mainly welded to either steel columns or beams during fabrication and prior to treating the steelwork to increase the life expectancy. Plain back channels again offer continuous adjustment longitudinally and can eliminate the need for site drilling thus reducing labour on site.

Cast in Channels

Type Channel Reference Hot rolled / Cold formed Available materials Available T head bolt sizes
Standard
Channels
28/15 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M6,M8,M10,M12
38/17 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16
40/25 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16
40/23 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16
49/30 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16,M20
54/33 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16,M20
Heavy Duty
Channels
40/22 WA Hot rolled Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16
50/30 WA Hot rolled Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16,M20
52/34 WA Hot rolled Carbon steel (HDG) or Stainless steel (A2 & A4) M10,M12,M16,M20
72/48 WA Hot rolled Carbon steel (HDG) or Stainless steel (A2 & A4) M20,M24,M27,M30
Toothed
Channels
29/20 WA Hot rolled Carbon steel (HDG) M12
38/23 WA Hot rolled Carbon steel (HDG) M12,M16
41/22 WA Cold formed Carbon steel (HDG) or Stainless steel (A2 & A4) M12,M16
Self Anchoring Channels 21/19 SA Cold formed Stainless steel (A2)
28/28 SA Cold formed Stainless steel (A2)

*Notes:
1. Other lengths are available on request, please contact ACS Stainless Steel Limited for further information.
2. Bolt sizes and lengths stated above include all sizes in all finishes. Some bolt sizes / lengths may not be available in some materials / finishes. Please consult ACS Stainless Steel Limited for further information.

Surface fixed channels

Channel Reference Available Materials Standard Lengths
25/15 SF Stainless steel (A2 & A4) 3000,6000
28/15 SF Carbon steel, HDG, Stainless steel (A2) 3000,6000
35/8 SF Stainless steel (A2) 3000,6000
38/17 SF Carbon steel (HDG) & Stainless steel (A2) 3000,6000

*Notes:
1. Other lengths are available on request, please contact ACS Stainless for further information.

Plain back channels

Channel Reference Available Materials Standard Lengths
28/15 PB Carbon steel, HDG, Stainless steel (A2) 3000,6000
38/17 PB Carbon steel, HDG, Stainless steel (A2) 3000,6000
40/25 PB Carbon steel, HDG, Stainless steel (A2) 3000,6000
49/30 PB Carbon steel, HDG, Stainless steel (A2) 3000,6000

*Notes:
1. Other lengths are available on request, please contact ACS Stainless for further information.
