FULLY DESIGNED A1 NON COMBUSIBLE CAVITY TRAY SOLUTION FOR HIGH RISE CONSTRUCTION
G-TRAY™ – tHE UK’S MOST SPECIFIED CAVITY TRAY SYSTEM
The G-Tray™ A1 non-combustible cavity tray sets new safety standards. As the world’s first A1, non-combustible , stainless steel cavity tray, it has achieved the safest classification possible and is the first in the UK to achieve full BBA certification. It satisfies fire safety regulations and considers essential processes, such as thermal bridging and differential movement.
DESIGNED WITH INDUSTRY-LEADING CONSTRUCTION WARRANTY PROVIDERS
The G-Tray™ was created to replace combustible cavity trays which have been restricted on all new projects using an SFS system that exceeds 18m in height. It was built with guidance from industry-leading construction warranty providers, who now recognise the G-Tray™ as a proven, compliant and robust solution.
DESIGN AND TESTING
G–Tray™ has endured a full test procedure as part of the BBA certification process, ensuring that the product is independently certified as well as fit for purpose.
This included a full test procedure involving water flow tests, accelerated ageing, and shear strength tests within a masonry panel.
All of this resulted in the BBA being able to state that the tray will remain effective for the life of the building in which they are installed.
WANT TO KNOW MORE
Our technical engineers will be happy to offer you advice about our G-Tray™ system.
The importance of sustainable practices in construction and manufacturing cannot be overstated. At ACS, we’re forging the way as the UK’s most sustainable manufacturer of structural building components. We don’t green wash our commitments, we are fully committed to doing the right thing for our planet and our customers.
We are carbon neutral
Purpose-built, sustainable factory
909 solar panels producing of 249.98Kw power
Energy efficient LED lighting
12 free electric vehicle chargers
Products manufactured using over 90% recycled material
And all 100% recyclable
0% waste to landfill
Fully electric mechanical handling fleet
FULLY TESTED AND GUARANTEED
G–Tray™ has endured a full test procedure as part of the BBA certification process, ensuring that the product is independently certified, as well as fit for purpose.

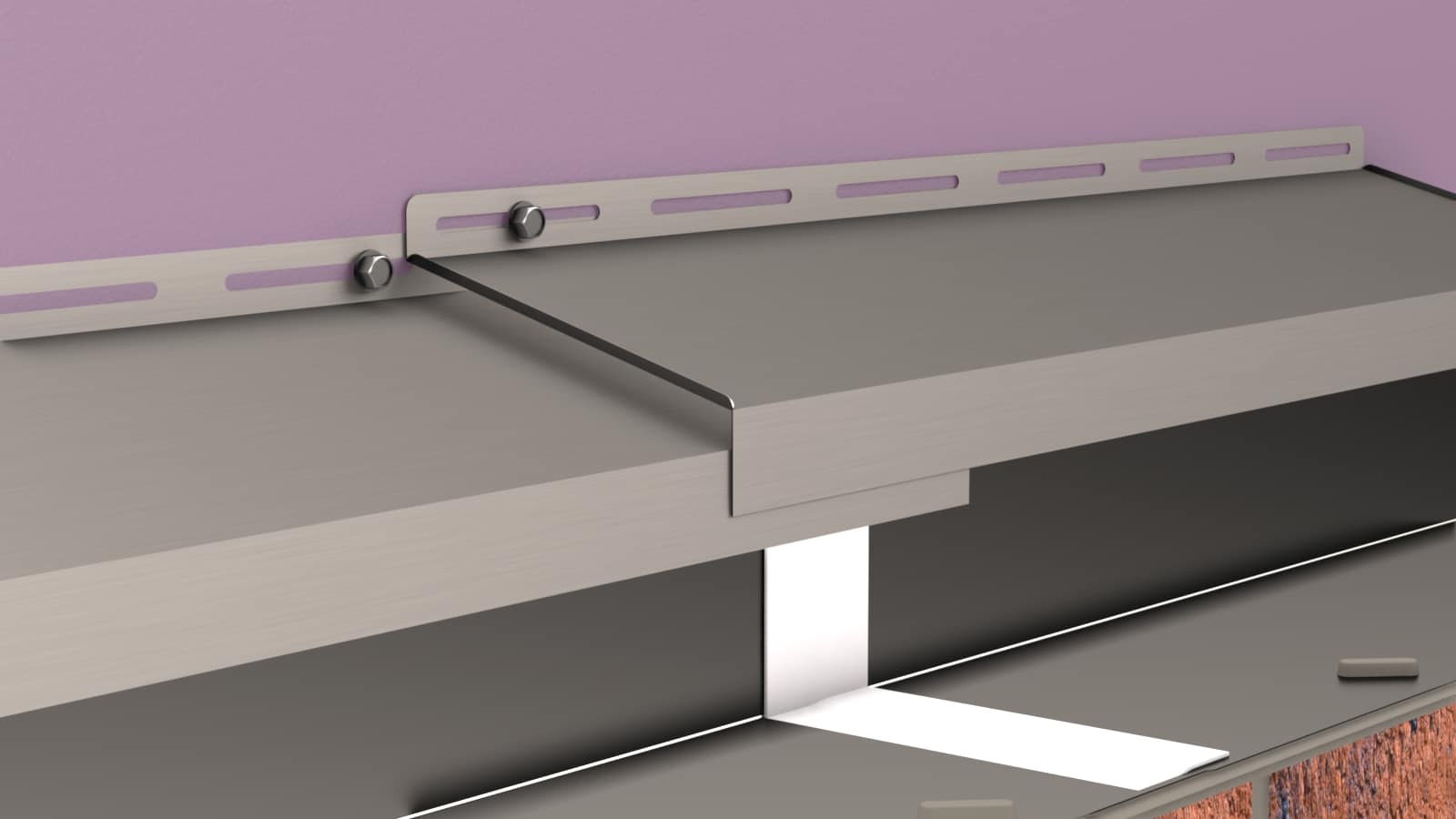

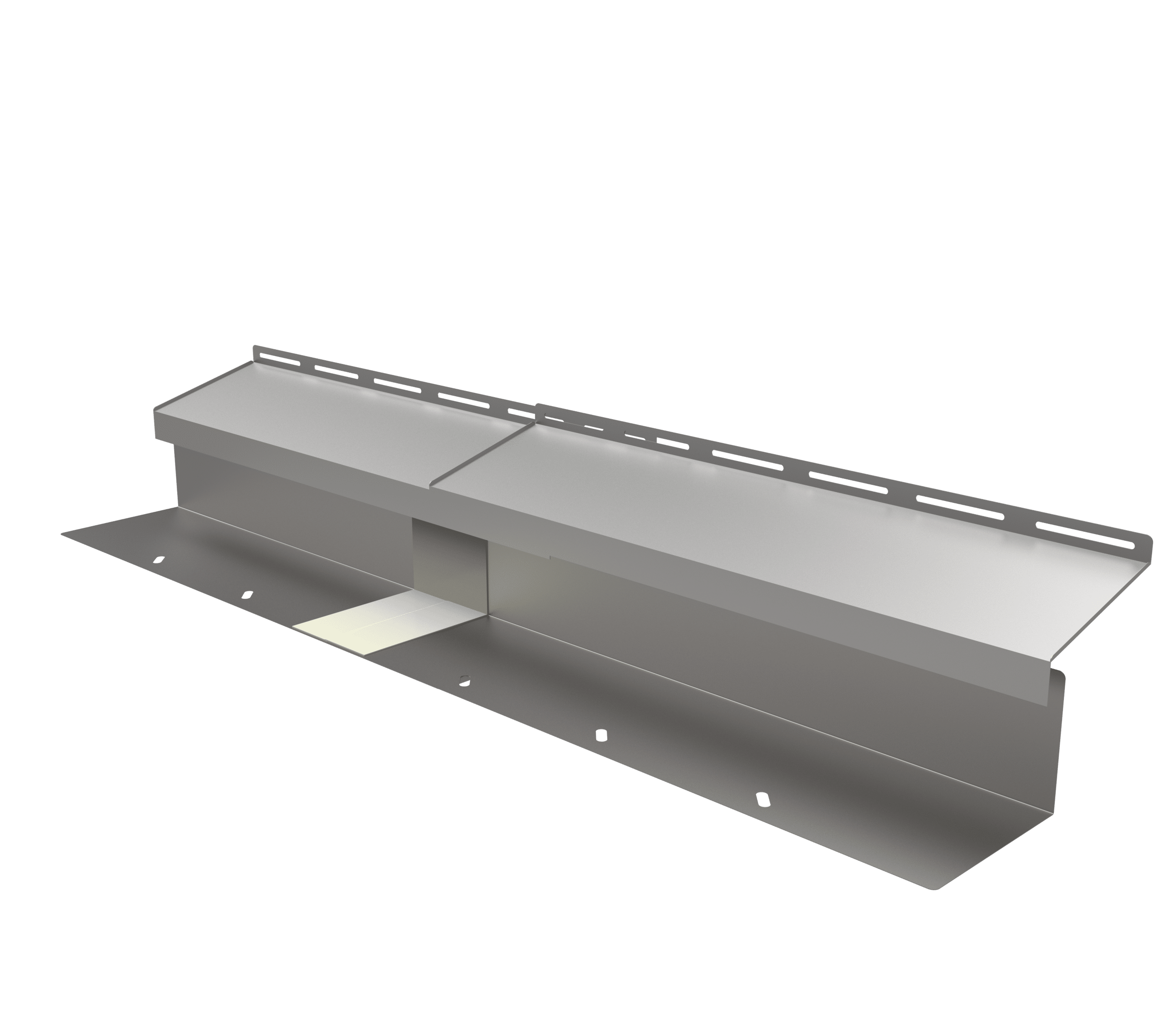

The G-Tray™ system requires Butyl tape to seal the system and prevent water ingress into the cavity or structure. This jointing method has been independently tested and certified by the BBA, for this specific type of installation.
For less complex projects choose A-Tray™, our off-the-shelf cavity tray AVAILABLE FOR NEXT DAY DELIVERY.
THIS INSTALLATION GUIDE DEMONSTRATES THE APPROVED PROCESS FOR THE G-TRAY™ CAVITY TRAY SYSTEM
The correct use and installation of an ACS G-Tray™ is critical for the function, durability and long-term performance of the system. G-Tray™ cavity trays must be installed using ACS Stainless Steel Tech screws/ Duopower Concrete Fixings and Butyl tape joints.
ACS Stainless Steel Fixings design, manufacture and supply the G–Tray™, a stainless steel cavity tray made from non-combustible material. This satisfies the latest regulations regarding fire safety and overcomes the problems that alternative products manufactured from combustible material pose.

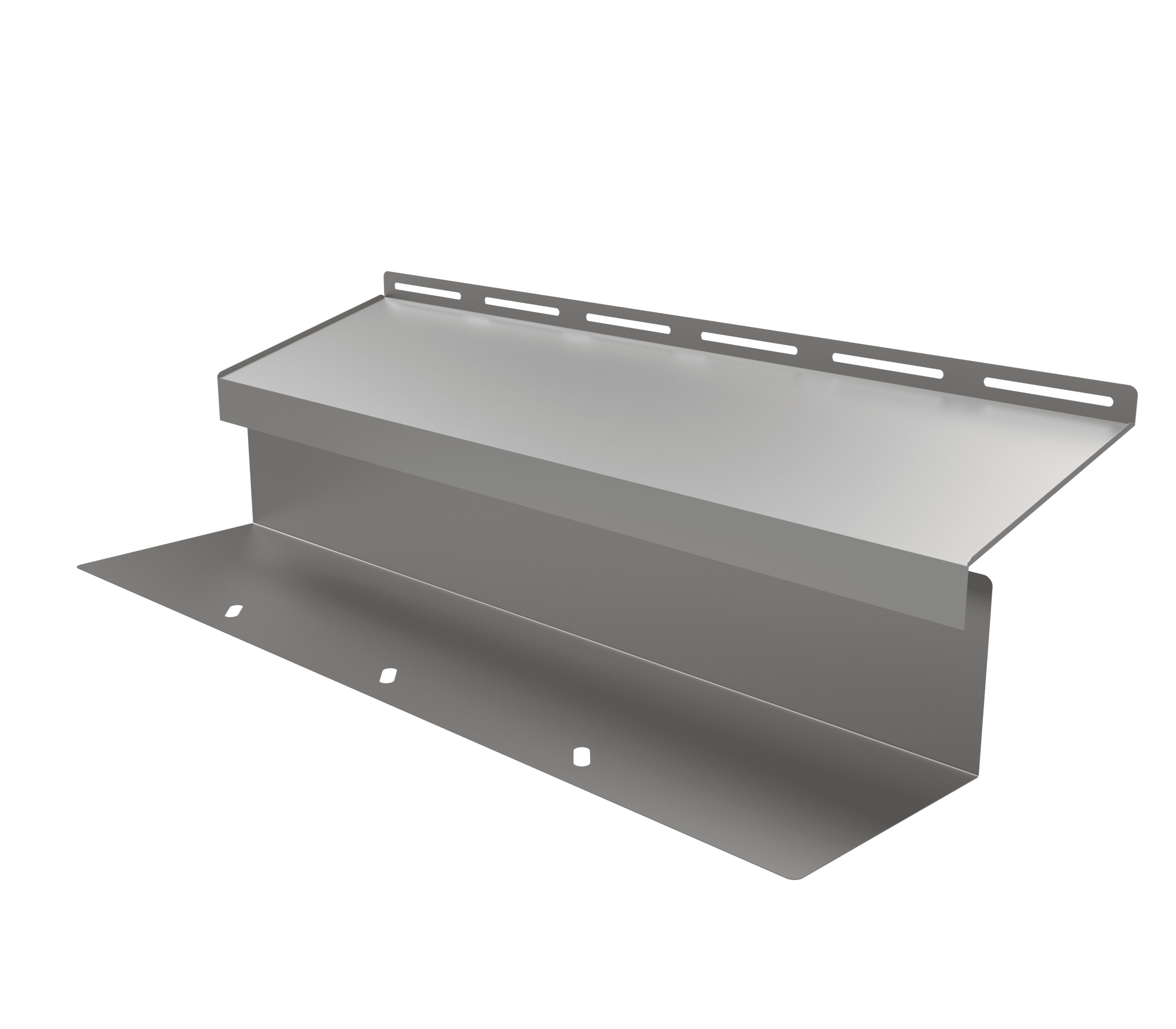

G–Tray™ is manufactured at our state of the art facility, from stainless steel sheet and provides a barrier to aid the passage of water from the internal structure/cavity of the building to the exterior leaf.
G-Tray has been granted a BBA certificate, following rigorous testing and assessment procedures to ensure that the product meets specific performance requirements. Ensure you fully read the BBA to confirm the product works for your project. If you have any questions, get in touch.
Enhance your understanding on the importance of installing the right cavity tray in buildings over 18 meters, the evolving regulations and finding the right non-combustible solutions. Learn about the importance of A1 rated cavity trays and the effects they have on buildings, including the problems of water pooling, the risk of water build up during construction, unsightly weep vents and the dangers of specifying and installing A2 rated products.
Choosing the right Cavity Tray is critical to the façade performance over the lifetime of a building. Our expert engineers have created this guide to help you understand the options on the market and the keys questions to ask when choosing the right Cavity Tray.
