A-TRAY™ CAVITY TRAY

ORDER A-TRAY™ FROM ONLY £22 PER METRE, IN STOCK NOW FOR NEXT DAY DELIVERY*

A-TRAY™ – CAVITY TRAY YOU CAN COUNT ON

Introducing our premium stainless steel, A1 non-combustible cavity tray system, specifically designed for high-rise construction. This innovative cavity tray product is designed to prevent water ingress and dampness within cavity walls, providing a durable and long-lasting solution for building envelope protection.

AVAILABLE RIGHT NOW

A-Tray™ Cavity Tray is available when you need it – order before 1pm for next day delivery. We hold the largest stock of stainless steel cavities in the UK which enables us to react quicker than any other supplier of cavity tray.

MADE TO WORK ON ALL TYPES OF PROJECTS

A-Tray™ cavity tray is highly versatile, suitable for use in a wide range of brick construction applications. It’s available in 1.2 metre lengths and can be adapted onsite to fit any cavity.

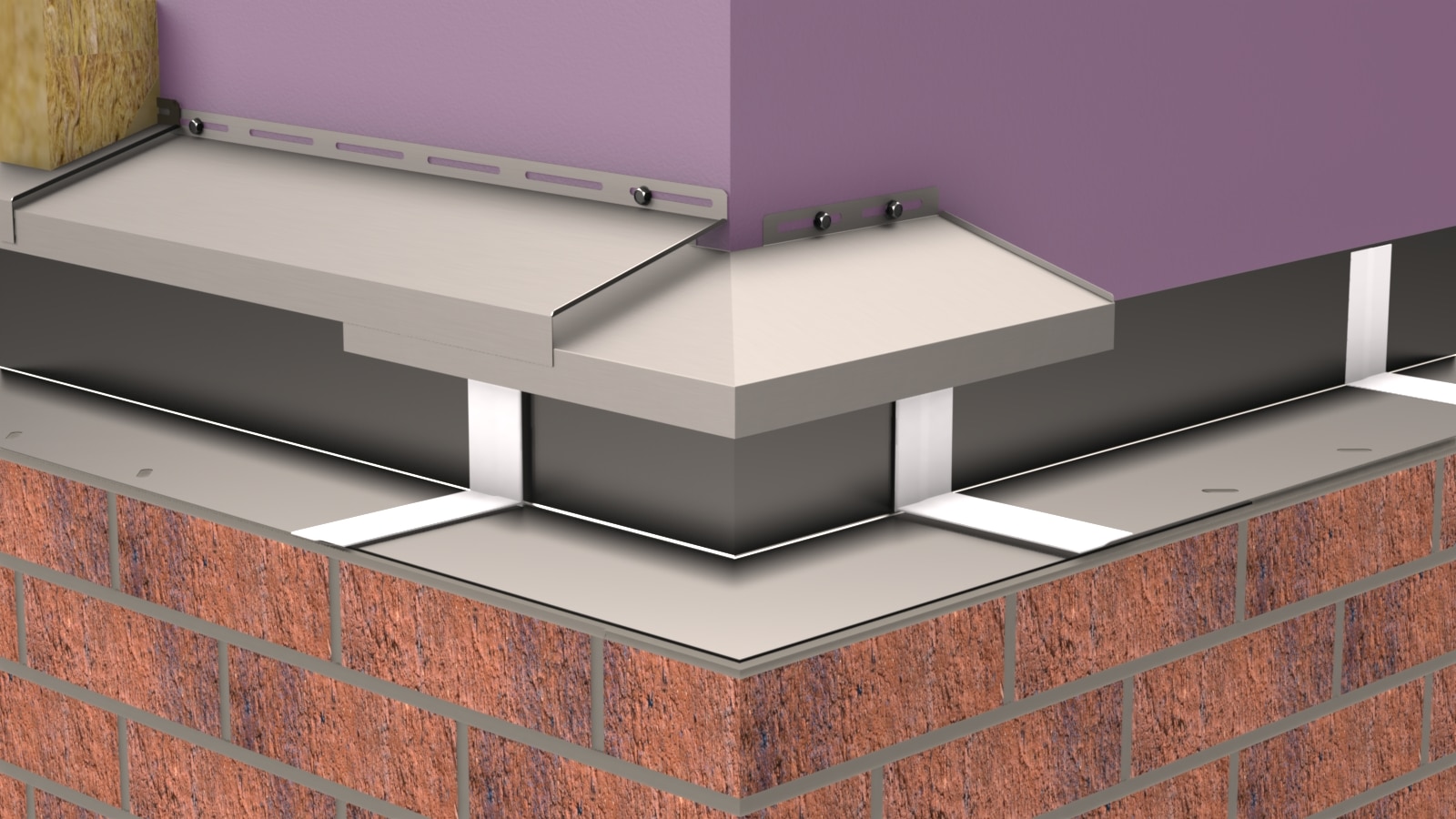

All A-Tray™ corners are pre-formed in the ACS factory to ensure there is no risk of water penetration, due to site formed details, a risk clearly identified by warranty providers.

WATCH THE VIDEO TO LEARN MORE

ZERO RISK OF BIMETALLIC CORROSION

Crafted from 90% recycled, high-quality stainless steel, this two-part cavity tray system mitigates risk of differential movement compared to single piece tray systems. It also offers exceptional strength and adaptability, ensuring reliable protection against water damage and corrosion. Its unique design allows for efficient water drainage, reducing the risk of structural damage and mould growth.

With its simple installation process, the A-Tray™ cavity tray system can be easily incorporated into any high-rise construction project, providing a reliable and effective solution for water management. A-Tray™ cavity tray is manufactured using only Stainless Steel, including the stainless steel weep vents available. The use of stainless steel weep vents eliminates the risk of bimetallic corrosion, as moisture is directed out of the cavity effectively. The weeps vents are also designed to prevent the ingress of debris.

SUSTAINABLY MADE BY THE UK’S BEST MANUFACTURER

The importance of sustainable practices in construction and manufacturing cannot be overstated. At ACS, we’re forging the way as the UK’s most sustainable manufacturer of structural building components. We don’t green wash our commitments, we are fully committed to doing the right thing for our planet and our customers.

We are carbon neutral
Purpose-built, sustainable factory
909 solar panels producing of 249.98Kw power
Energy efficient LED lighting
12 free electric vehicle chargers
Products manufactured using over 90% recycled material
And all 100% recyclable
0% waste to landfill
Fully electric mechanical handling fleet

FULLY TESTED AND GUARANTEED

A–Tray™ has endured a full test procedure as part of the BBA certification process, ensuring that the product is independently certified, as well as fit for purpose.

The A-Tray™ system requires Butyl tape to seal the system and prevent water ingress into the cavity or structure. This jointing method has been independently tested and certified by the BBA, for this specific type of installation.

For more complex projects choose G-Tray™, our fully detailed cavity tray drawn by our technical engineers. Click here for more info on G-Tray™.

dESIGNED FOR SINGLE PERSON INSTALLATION

A-Tray™ is simple to install and only requires a single person due to creation of the ACS installation tool which works as another pair of hands but without the labour cost.

WATCH THIS INSTALL VIDEO TO LEARN HOW EASY IT IS TO FIT

THIS INSTALLATION GUIDE DEMONSTRATES THE APPROVED PROCESS FOR THE A-TRAY™ CAVITY TRAY SYSTEM

The correct use and installation of an ACS A–Tray™ is critical for the function, durability and long-term performance of the system. A–Tray™ cavity trays must be installed using ACS Stainless Steel tek screws/Duopower Concrete Fixings and Butyl tape joints.

Installation guidance for:

GT1/GT2
Tray stop ends
A–Tray™ corner

CLICK TO DOWNLOAD THE INSTALLATION GUIDE

TECHNICAL dATA SHEET

ACS Stainless Steel Fixings design, manufacture and supply the A–Tray™, a stainless steel cavity tray made from non-combustible material. This satisfies the latest regulations regarding fire safety and overcomes the problems that alternative products manufactured from combustible material pose.

A–Tray™ is manufactured at our state of the art facility, from stainless steel sheet and provides a barrier to aid the passage of water from the internal structure/cavity of the building to the exterior leaf.

CLICK TO DOWNLOAD THE FULL DATA SHEET

BBA CERTIFIED

A-Tray has been granted a BBA certificate, following rigorous testing and assessment procedures to ensure that the product meets specific performance requirements. Ensure you fully read the BBA to confirm the product works for your project. If you have any questions, get in touch.

CLICK TO DOWNLOAD THE FULL BBA CERTIFICATE

STANDARD DRAWINGS PACK

This standard drawings pack contains visual representations that communicate the design and construction details. These precise drawings provide crucial information about dimensions, materials, layouts and specifications. Architects, engineers and contractors should use them to ensure accurate execution of projects to avoid errors during construction.

CLICK TO DOWNLOAD THE STANDARD DRAWINGS PACK

CPD SERIES

Enhance your understanding on the importance of installing the right cavity tray in buildings over 18 meters, the evolving regulations and finding the right non-combustible solutions. Learn about the importance of A1 rated cavity trays and the effects they have on buildings, including the problems of water pooling, the risk of water build up during construction, unsightly weep vents and the dangers of specifying and installing A2 rated products.

BOOK NOW

HOW TO SPECIFY NON-COMBUSTIBLE CAVITY TRAY

Choosing the right Cavity Tray is critical to the façade performance over the lifetime of a building. Our expert engineers have created this guide to help you understand the options on the market and the keys questions to ask when choosing the right Cavity Tray.
